This article is about the Glock pistol. For the Glock company, see Glock GmbH.

The Glock are a series of semi-automatic, polymer-framed striker-fired pistols. They are chambered in several calibers, and are designed and manufactured in Austria (with some manufacturing plants in USA as well).

History

The Glock 17 showed up in the early 1980s for the Austrian Army weapons trials. It entered service under the designation P80. In 1988, it entered service in the Swedish Army under the designation Pistol 88. It is also used by the Norwegian Army and police, The designation 17 is derived from the gun being Gaston Glock's 17th patent, rather than its magazine capacity.

History_Channel_-_Beretta_and_Glock_Handgun

History Channel - Beretta and Glock Handgun

Different Glock models (G22s) are also in use with some U.S. military units, and a large portion of U.S. police forces also use Glocks (mainly in 9mm, .40 S&W, .45 ACP, and .357 SIG).

The Glock line of pistols has been redesigned several times over their lifespan, and have been shown to be extremely reliable.

The Glock is also very popular with civilians for protection and sporting purposes.

Design details

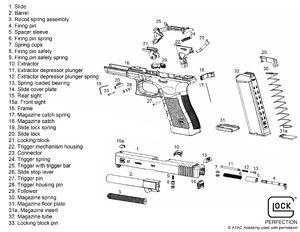

Glockschematic

The Glock pistols are all striker-fired, short-recoil operated, locked-breech designs. The Glocks utilize what Glock refers to as the "safe action"; a system of safeties built into the weapon itself to prevent accidental discharges. These include a trigger safety (a lever built into the trigger itself that prevents the trigger from being depressed unless the lever is depressed first), a striker safety (a spring-loaded pin attached by an extension bar to the trigger assembly, which blocks the striker from striking the primer of the cartridge until the trigger is pulled), and a drop safety (The far end of the extension bar locks the striker into place from the rear until the trigger is pulled).[1]

The safe action does not interfere with normal operation of the weapon; if the trigger is depressed, the weapon will fire.

Differences between Generations

Glock has updated its basic design several times throughout its production history. Commentators had long separated the large changes into generations. Glock eventually accepted this nomenclature with their "Gen4" models.

Gen 1

The "Gen 1" Glocks are the original models, produced from 1982 to 1991. These models featured a smooth grip and a very dark black frame. Later models would lighten the tint of the black polymer frame. Total only 115,000 Glock models from 17, 18 and 19 were produced. As a result, they are tough to find today and though they are a hot collector's item, they are still the least expensive of all the generations.

Gen 2

A mid-life upgrade to the Glock pistols involved the addition of checkering on the front strap and serrations to the back strap. These versions were introduced in 1988 and were informally referred to as "second generation" models. To meet American ATF regulations, a steel plate with a stamped serial number was embedded into the receiver in front of the trigger guard.

In 1991, an integrated recoil spring assembly replaced the original two-piece recoil spring and tube design. The magazine was slightly modified, changing the floorplate and fitting the follower spring with a resistance insert at its base.

Being more common than the Gen 1s, the Gen 2 Glocks enjoy popularity but are less desirable to collectors.

Gen 3

In the late 1990s, the frame was further modified with an accessory rail (called the "Universal Glock rail") to allow the mounting of laser sights, tactical lights, and other accessories. Thumb rests on both sides of the frame and finger grooves on the front strap were added. Glock pistols with these upgrades are informally referred to as (early) "third-generation" models. Later third generation models additionally featured a modified extractor that serves as a loaded chamber indicator, and the locking block was enlarged, along with the addition of an extra cross pin to aid the distribution of forces exerted by the locking block. This cross pin is known as the locking block pin and located above the trigger pin.

The polymer frames of third-generation models can be black, flat dark earth or olive drab. Besides that, non-firing dummy pistols ("R" models) have a bright red frame and Simunition-adapted practice pistols ("T" models) ā€“ a bright blue frame for easy identification.

In 2009, the Glock 22 RTF2 (Rough Textured Frame 2) (chambered in .40 S&W) was introduced. This pistol featured a new checkering texture around the grip and new scalloped (fish gill shaped) serrations at the rear of the sides of the slide. Many of the existing models became available in the RTF2 version, including the 31, 32, 23, 21, 19. Some of those did not have the fish gills.

The Gen 3 Glocks were produced in the millions, and are the most common of all the Glock generations.

Gen 4

Many of the models come in a 4th-generation version. Most others are Gen 3 versions. The "Gen 4" versions have a few notable differences. The primary differences are the presence of interchangeable backstraps (to make the grip thicker or thinner for shooters with various sized hands) and a reversible magazine release which allows the mag-release to be swapped so that a left-handed shooter can more easily eject a magazine.

Gen 4 Glocks have received mixed reactions, with most criticisms focused on the rough grip texture and the changed recoil spring, which have led to some recalls.

Gen 5

5th generation Glock pistols lack finger grooves, but allow backstrap customization like the Gen 4, and have ambidextrous slide stop levers. The slide edges are slanted, which was previously the case on the Glock 34. Current production Gen 5 pistols also have front slide serrations.

Variants

Glock 17

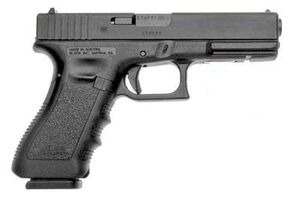

Glock 17

The Glock 17 (G17) is the full-size 9mm variant and the first Glock model produced, so named because it was the seventeenth patent for Glock. It features a 4.5-inch/10.1-cm barrel and the standard magazine capacity is 17 rounds.

There are several variants of the Glock 17.



Glock 17C

Glock 17C

Note the compensator cuts at the front of the slide

The Glock 17C (for "compensated") has a ported barrel and slide to reduce muzzle climb while shooting the pistol. Although a production Glock, it cannot be used in the Production Division in either USPSA or IDPA matches.




Glock 17L

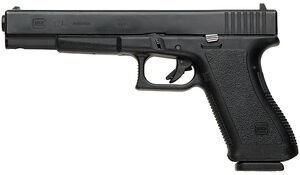

G17L

The Glock 17L is a competition version with a longer barrel and slide. Early versions also had a ported barrel (compensated) to combat muzzle flip. The 17L has been largely replaced by the Glock 34 due to post-introduction restrictions on overall length in many popular competition categories. It is NOT LEGAL for PRODUCTION DIVISION in either USPSA or IDPA competition due to it not fitting in the "IDPA BOX" due to the length.

Used by anti-terrorist and hostage rescue units.

It is usually made every few years by GLOCK in 3- to 4-year runs. Doesn't fill a niche market anymore but is highly desirable for its better sight radius and low muzzle flip due to the weight, as well as higher velocities due to the longer barrel.




Glock 17A

The Glock 17A is a variant produced for the Australian market, to conform to local laws regarding barrel lengths. The only differences between a Glock 17 and a Glock 17A is that the 17A has a 120mm long barrel which protrudes from the frame visibly, and the magazine can only hold 10 rounds.



Glock 17Pro

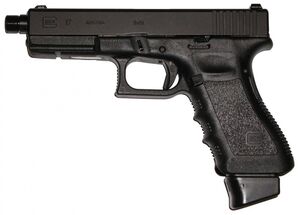

G17pro

The Glock 17Pro is a special version produced only for the Finnish market. It has the following improvements over the standard Glock 17:

  • Glock factory tritium night sights
  • Glock factory threaded barrel, about 1/1" longer than the standard one
  • Factory marine spring cups
  • Factory modified magazine release
  • Extended slide release, (factory standard in newer models)
  • Extended +2 magazine base plates
  • Glock factory gun pouch
  • 3.5 lbs connector



Glock 17P80

The Glock 17P80 is used by the Norwegian armed forces.



Glock 17M

Glock17M

Redesigned version used by the FBI. Very similar to the Glock 17 Gen 5 with the exception of various markings, extended magazine release, flared magazine well and nDLC-coated internals.[2]




Glock 18

Glock 18

The GLOCK 18 (G18) is a full-size 9mm variant of the Glock; however, unlike all other Glock models, it is a select-fire machine pistol, and has a selector switch on the slide. The select-fire parts are not interchangeable with any other Glock variant. This variant can take either Glock 17 magazines or 33-round magazines.

This variant was developed at the request of the Austrian counter-terrorist unit EKO Cobra.

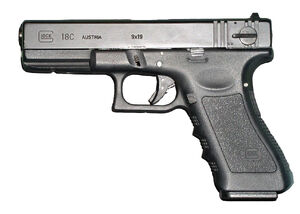

Glock 18C

Glock 18c

Compensated variant of the Glock 18.




Glock 19

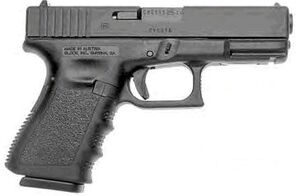

Glock 19

Compact 9mm variant. It features a 4-inch barrel and a standard magazine capacity of 15 rounds. The Glock 19 can take Glock 17 and Glock 18 (33 round) magazines.




Glock 19C

Compensated variant of the Glock 19.

Glock 19X

Glock 19X

"Crossover" compact 9mm variant, combining a Glock 17-style frame with a Glock 19-style slide.



Glock 20

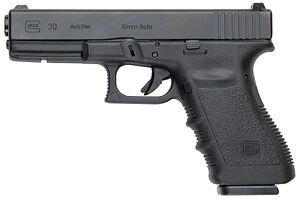

Glock20

The full-size 10mm variant. The frame of this Glock (and the Glock 21) is a bit larger than other Glocks to accommodate for the size and power of the cartridges fired. The Glock 20 features a 15-round standard magazine capacity and a 4.5-inch barrel.

The SF version (short frame) has a smaller grip for shooters with smaller hands.

It is one of the few pistols chambered for the 10mm cartridge and has a 6" barrel available for purchase.

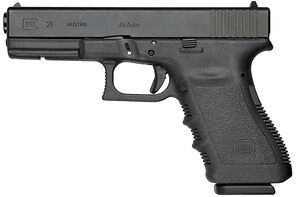

Glock 21

Glock21

The full-size .45 ACP variant. Like the Glock 20, the frame of this pistol is larger to accommodate for the size and power of the cartridge fired. The Glock 21 features a 4.5-inch barrel and a standard magazine capacity of 13 rounds.

The SF version (short frame) has a smaller grip for shooters with smaller hands.

One variant of the SF version, sometimes informally referred to as the 21SFP, included a standard Picatinny rail instead of the Glock rail, as well as an ambidextrous magazine release. This variant was manufactured for a specific customer.




Glock 21C

Glock 21C

Compensated variant of the Glock 21.

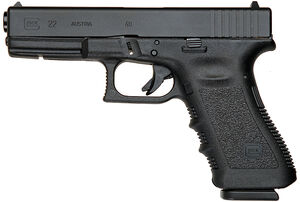

Glock 22

Glock22

The full-size .40 S&W variant. It features a 4.5-inch barrel and a standard magazine capacity of 15 rounds. It is the same overall size as the Glock 17.



Glock 23

GLOCK 23

The compact .40 S&W variant. It features a 4-inch barrel and a standard magazine capacity of 13 rounds. The Glock 23, like the Glock 19, can use the full-size variant magazines (in this case, Glock 22).



Glock 24

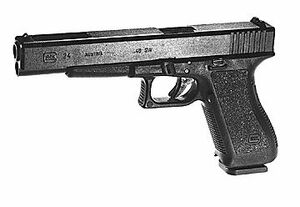

Glock 24

This is the competition variant of the Glock 22. It has similar features to the Glock 17L, and like the Glock 17L, was dropped from regular production upon the release of the Glock 34 and 35.

These are still produced occasionally.

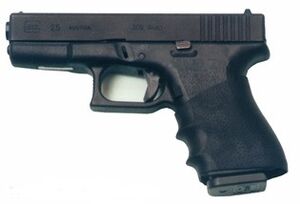

Glock 25

Glock 25

This is the compact .380 ACP variant, adapted from the Glock 19. Unlike the other Glocks, the Glock 25 (and the Glock 28) is a blowback-operated weapon. It features a standard magazine capacity of 15 rounds and a 4-inch barrel. Along with the Glock 28, this model cannot be imported into the United States.

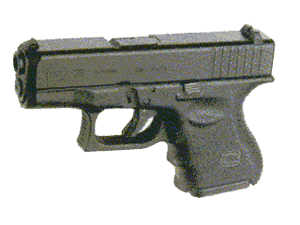

Glock 26

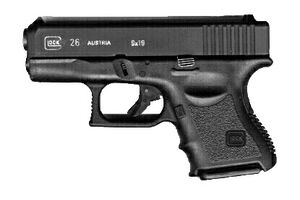

G26B

This is the subcompact 9mm variant. It features a 3.5-inch barrel and a standard magazine capacity of 10 rounds. It can take both Glock 19 and Glock 17 magazines, and there are spacers available to improve ergonomics when gripping these magazines while shooting this weapon.



Glock 27

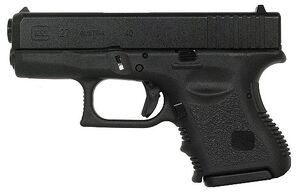

Glock 27

This is the subcompact .40 S&W variant. It features a 3.5-inch barrel and a standard magazine capacity of 9 rounds. It can take both Glock 22 and Glock 23 magazines, and there are spacers available to improve ergonomics when gripping these magazines while shooting this weapon.



Glock 28

Glock 28

This is the subcompact .380 ACP variant. Like the Glock 25, this is a blowback-operated semi-automatic pistol. It features a standard magazine capacity of 10 rounds and can use Glock 25 magazines. This model, along with the Glock 25, cannot be imported into the United States.



Glock 29

Glock29

Subcompact 10mm variant. It has a standard magazine capacity of 10 rounds, and can also take Glock 20 magazines. The barrel length is 3.8 inches. The SF version (short frame) has a smaller grip for shooters with smaller hands.




Glock 30

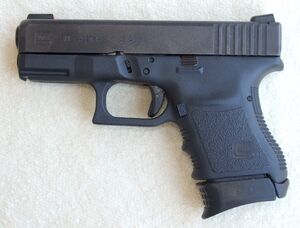

Glock 30

Subcompact .45 ACP variant. It has a standard magazine capacity of 10 rounds, and can take Glock 21 magazines. The barrel length is 3.8 inches.


The SF version (short frame) has a smaller grip for shooters with smaller hands.

The 30S has a 30SF frame and 36 slide.

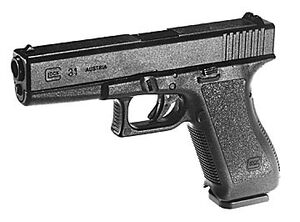

Glock 31

Glock 31

.357 SIG variant of the Glock 22. The magazines for the Glock 31 are the same as the Glock 22 (15 rounds).




Glock 31C

The compensated variant of the Glock 31.

Glock 32

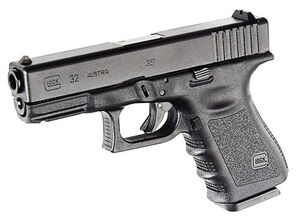

Glock 32

.357 SIG variant of the Glock 23. It can use magazines for the Glock 31 as well as the standard Glock 23 magazines (13 rounds).

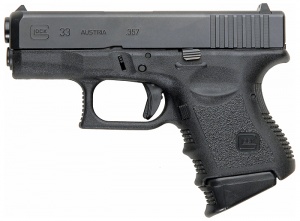

Glock 33

Glock 33

.357 SIG variant of the Glock 27. It can use magazines for the Glock 31 and 32 as well as standard Glock 27 magazines (9 rounds).



Glock 34

Glock 34

A variant of the Glock 17. The barrel is 5.3 inches long, and the slide and barrel are slightly shorter than that of the Glock 17L. Uses Glock 17 magazines, and is chambered in 9mm.

Competition, practical/tactical USPSA/IDPA-production division legal, whereas the 17L is not due to its length being too long to fit in the IDPA "box" used to determine the legal size for competition pistols.




Glock 35

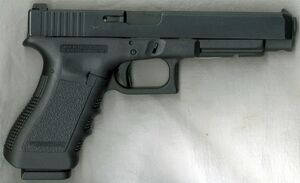

Glock35Right

.40 S&W variant of the Glock 34.



Glock 36

Glock 36

Subcompact slimline .45 ACP variant. It uses single-stack magazines, and thus it is the only Glock that cannot take the magazines of its larger variants. It has a magazine capacity of 6 rounds.




Glock 37

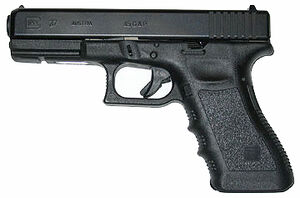

Glock37

Full-size .45 GAP variant. Unlike the .45 ACP Glock 21, this Glock can use the similar-sized frame as the Glock 17 and 22; there are subtle differences, however, such as the slide being wider. The magazine capacity for the Glock 37 is 10 rounds.



Glock 38

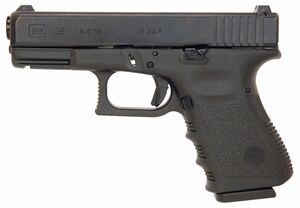

Glock38

Compact .45 GAP variant, using a similar-sized frame as the Glock 19. The standard magazine capacity is 8 rounds, and it can take Glock 37 magazines.

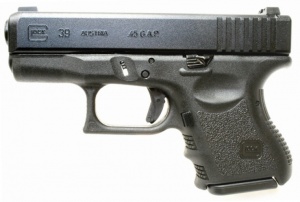

Glock 39

Glock 39

Subcompact .45 GAP variant, using a similar-sized frame as the Glock 26. The standard magazine capacity is 6 rounds, and it can take Glock 37 and Glock 38 magazines.



Glock 40

Competition 10mm variant.

Glock 41

This is a competition or target version of the Glock 21 in .45 ACP. Much like what the G34 is in relation to the G17; it features a 5.3-inch barrel and an elongated slide to accommodate for it. Used for "MAJOR" caliber competitors in PRACTICAL/TACTICAL divisions.

Note: "Gen4" only.

Glock 42

Subcompact slimline .380 ACP variant produced in the USA, which unlike the Glock 25 and 28 allows domestic sales in that market. Uses a staggered-stack magazine with a capacity of 6 rounds, plus one in the chamber. Introduced at the 2014 SHOT Show, the Glock 42 is an all-new locked-breech "slimline" (83 mm (3.3 in) barrel) design. The single-stack magazine is unique to this model, with a capacity of 6 rounds. It was Glock's smallest model ever made until the introduction of the Glock 43. The Glock 42 introduced several significant design changes relative to all prior Glock models:

  • Redesigned firing pin safety - Wider non-rotating firing pin safety.
  • Slide stop lever coil spring - Coil spring eases assembly, changes the order of assembly and disassembly, eliminates the possibility of misaligning slide stop lever spring.
  • Reconfigured trigger return spring

Glock 43

Glock 43

Claimed to be the most highly anticipated design in the whole of the history of Glock GmbH, the Glock 43 is a subcompact slimline variant chambered for 9Ɨ19mm Parabellum. It uses a single-stack magazine (rather than a double-stack magazine) with a capacity of 6 rounds, plus one in the chamber. It is the smallest Glock in production. The Glock 43 was released to the public in 2015.




Glock 43X

Glock 43X

This variant differs from the regular Glock 43 in that it has a longer grip for a higher 10-round magazine capacity, as well as having front slide serrations.




Glock 44

Glock 44

Compact single-stack .22 LR variant.




Glock 45

Glock 45

"Crossover" compact 9mm variant with similar features to the Glock 19X.




Glock 46

Glock 46

Compact 9mm variant.




Glock 47

Glock 47

Full-size 9mm variant with a Glock 45 style frame.




Glock 48

Glock 48

Compact, single-stack 9mm variant.




Glock 49

Glock 49

9mm variant combining a compact frame with a full-size slide.




Dimensions

  • Length (overall): 151 mm / 5.94 in.
  • Length (slide cpl.): 146 mm / 5.75 in.
  • Width: 24 mm / 0.94 in.
  • Height (with magazine): 105 mm / 4.13 in.
  • Barrel length: 82.5 mm / 3.25 in.
  • Length of twist: 250 mm / 9.84 in.
  • Trigger distance: 61 mm / 2.40 in.
  • Trigger travel: 12.5 mm / .49 in.
  • Barrel distance: 18 mm / 0.71 in.
  • Line of sight (polymer): 125 mm / 4.92 in. Weight
  • Pistol without magazine: 350 g / 12.35 oz.
  • Magazine std. empty: 40 g / 1.41 oz.
  • Magazine std. full: 57 g / 2.01 oz.
  • Magazine Capacity (rounds): 6
  • Barrel Profile: right hand twist; hexagonal
  • Standard Trigger Pull: ~5.62 lbs.
